5 five ROLL REFINER

The K&KURT 5 five ROLL REFINER for chocolate is designed with the latest technology.

5 roll refiner can be used as finer after 2 roll refiner or stand alone for refining proces.

It is possible to get high degrees of fineness from 5 five roll refiner without causing damage to the product due to the overheating which is typical of other types of refining processes. We obtained very fine outputs during our tests.

The area of contact between the rolls is very limited and 50% of the surface of the rolls is used as a cooling area.

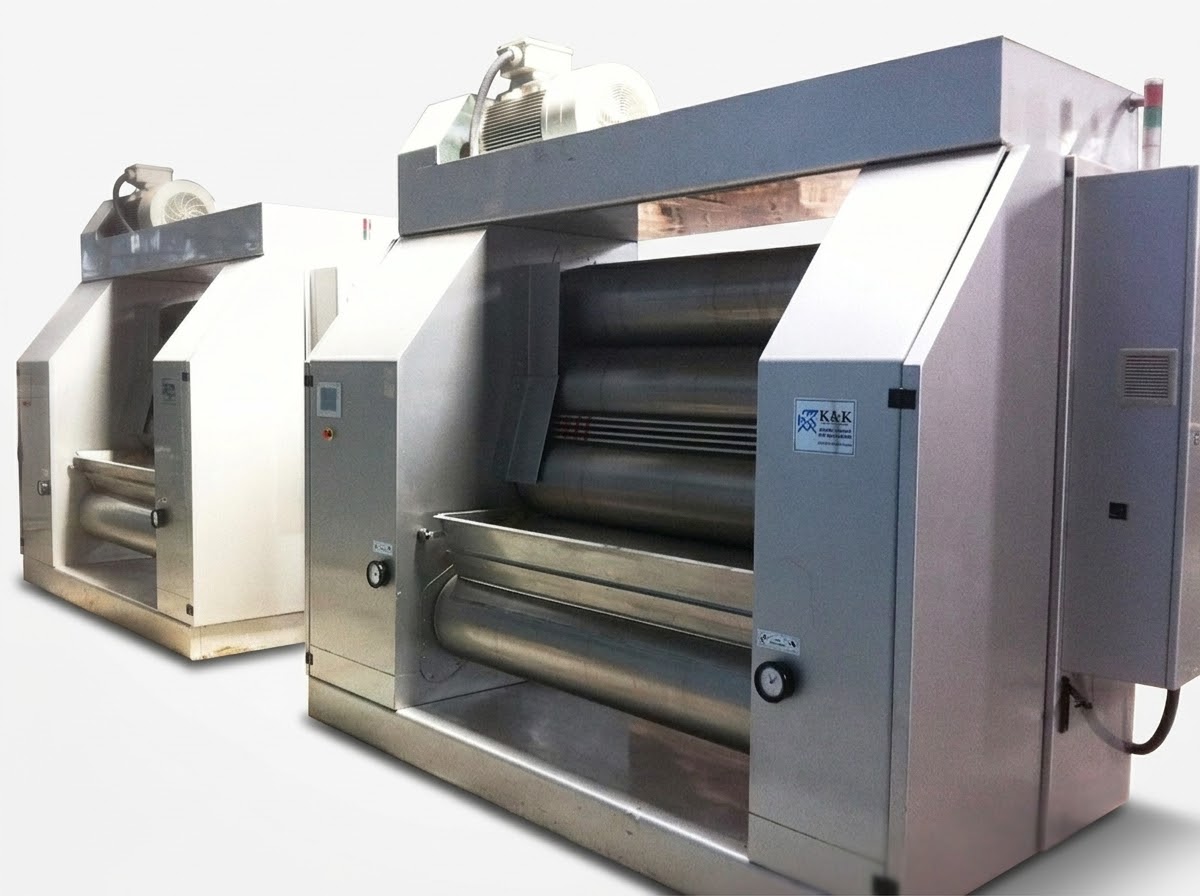

5 roll refiner

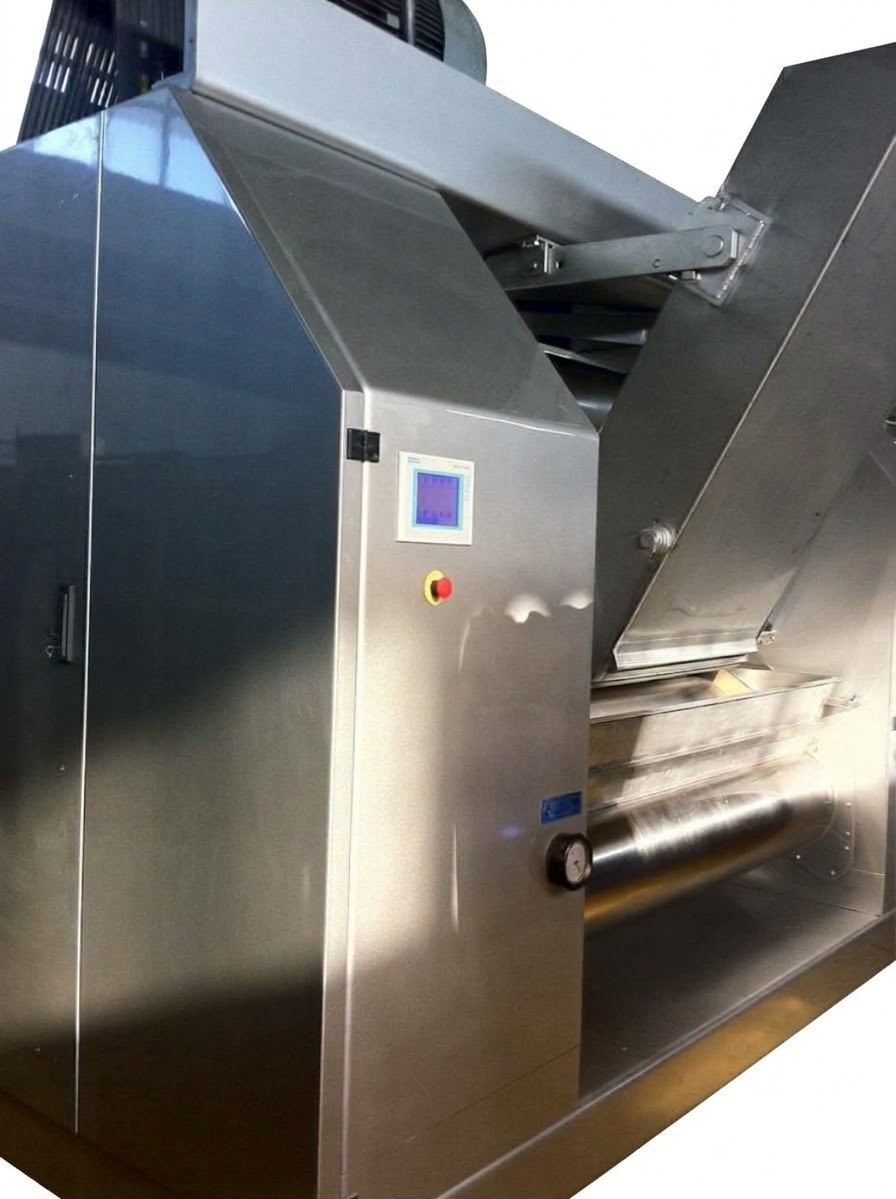

5 roll front The results obtainable with the use of the 5 five roll refiner in particular, the fineness, flavor and technological characteristics of the finished product cannot be reproduced with other types of systems. This is because other processes take place during the refining process, and these are fundamental for the formation of the characteristics of the final product. 5 roll side

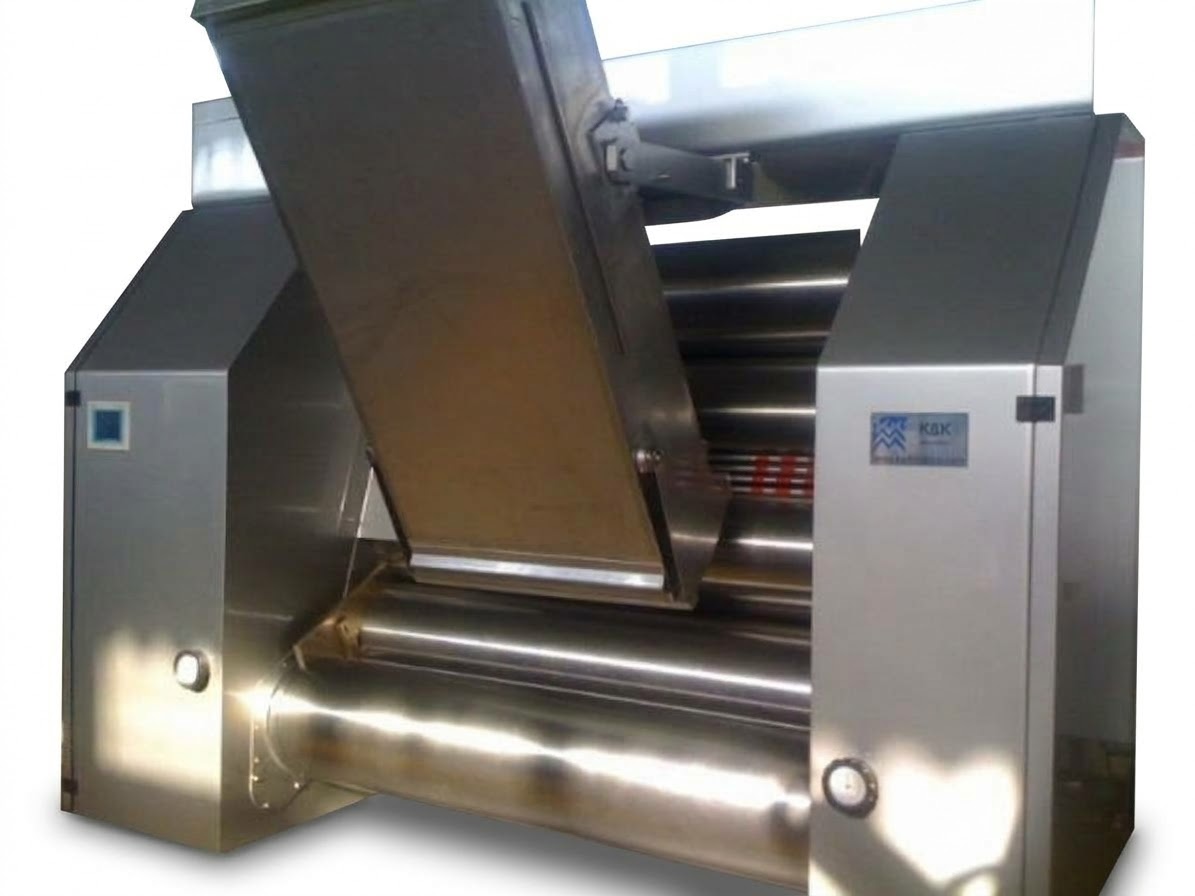

K&K 5 ROLL REFINER FOR REFINING CHOCOLATE

5 roll refiner



Technical data K&K 5 five roll refiner for chocolate

KK5R1000YP - KK5R1300YP - KK5R1800YP - KK5R2500YP
Rolls
Diameter ( mm )
400
Useful length ( mm )
1000-1300-1800-2500
Drive
Main motor ( KW )
55-130
Nominal throughput
at 10 - 40 µm (t/h)
0.5- 2.5
